ONLINE MONITORING SYSTEM FOR VOC & TOC

total organic carbon (TOC) & VOC meter idea to help detect mixed gas volatile organic compound (VOC) levels as part of an indoor air quality (IAQ) maintenance program. Volatile Organic Compounds (VOCS) are carbon based compounds that pose a significant health hazard due to their toxicity. VOCs in large concentrations can easily be present in the air without us always knowing due to lack of odor or color. Other VOCs in higher concentrations are readily noticeable by odor such as gasoline vapors which are comprised of several different VOCs. Even very small levels of VOCs over a period of time can cause long term damaging effects to human health and thus must be monitored. Some VOCs, if allowed to reach high concentrations, can be extremely volatile and sometimes combustible. The proper monitor can be selected depending upon what anticipated VOCs there are to be present. A Photo Ionization Detector (PID) can analyze a wide range of chemicals, including aromatic hydrocarbons, but excluding low molecular weight hydrocarbons. PID works by using ultraviolet light to break down airborne VOCs into either positive or negative ions. Once broken down, the detector can then measure or detect the charge of the ionized gas. It should be mentioned that PID only temporarily changes the VOC sample it detects and does not permanently change them. Methylene chloride is an example of a dangerous VOC PID is useful in detecting.

TOC & VOC Analyzers to measure TOC & VOC value more accurately, meet regulations, maximize productivity, and improve process control in the following applications:

Gas Producers

Cement

Metals & Minerals

Power

Oil & Gas

Waste Disposal

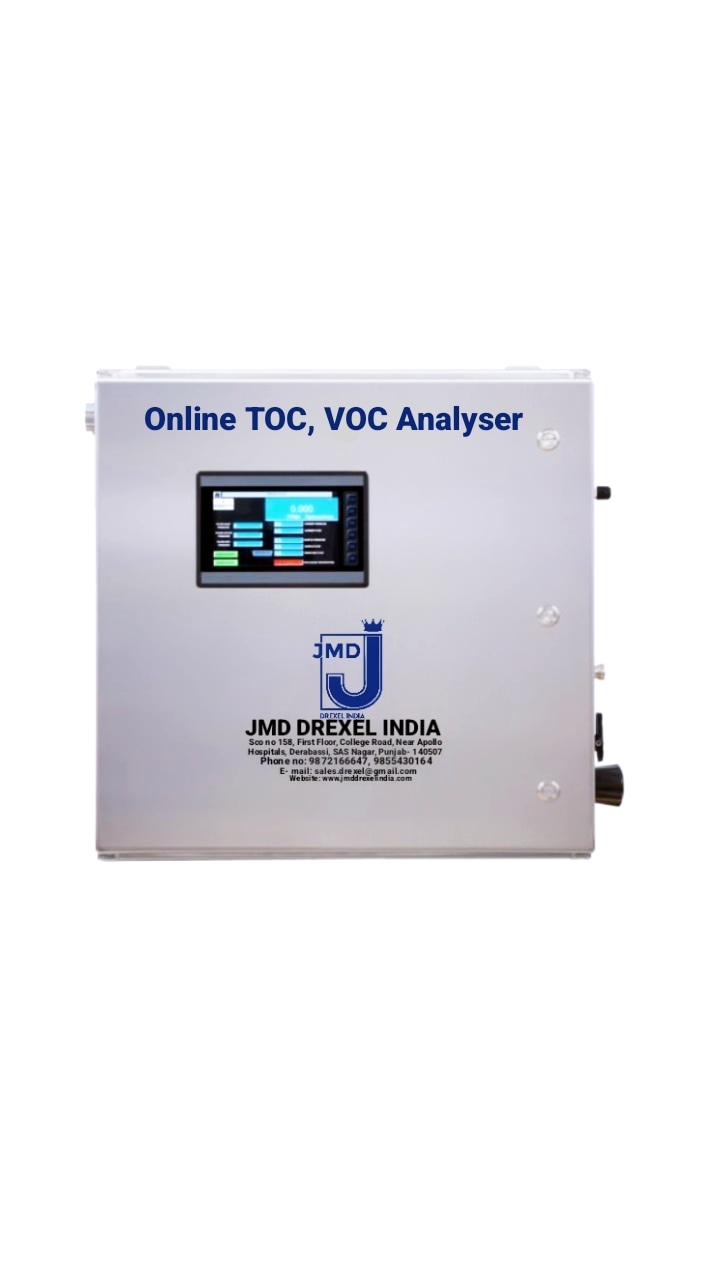

TOC And VOC Analyzer

PRODUCT OVERVIEW:

JMD VOC gas sensor Analyzer for Continuous detecting /monitoring of Volatile Organic Carbons (VOC’s) in ambient air over the widest dynamic range on the market without compromising performance.
JMD presents a novel and simple approach to measure atmospheric total organic carbon (TOC) based on catalytic oxidation combustion technique of organics in bulk air as per CPCB Guidelines

System Specification:

PRODUCT OVERVIEW:

  • Compact Wall mounted cabinet IP 68 with inbuilt software
  • Built in Display 15” (optional 7” touch screen) Built in 3 hours battery backup
  • Online data transmission to CPCB/SPCB In built auto sample line cleaning
  • Real time Recording

Technical Specifications:

VOC Analyzer:

  • Principal: Ionization Detection Method
  • Range: 0 – 100 ppm
  • Accuracy: ±2%
  • Operating voltage: 24VDC Nominal
  • Output signal: 4 to 20mA

VOC Analyzer:

  • Heating Combustion Oxidation Method
  • Range: 0 – 1000 ppm
  • Accuracy: ±2%
  • Operating voltage: 24VDC Normal
  • Output signal: 4 to 20mA

Features:

  • Fully Automation & Ease of Operation
  • Strong Adaptability & Compatibility
  • High Accuracy & Precision
  • Space Saving with Ergonomics Design
  • Factory Calibration
  • Controllable process and accurate results
  • Weather Proof & Flame Proof.
  • Data Storage: On server
  • Voltage 220-240 VAC
  • Consumption: 800 W max.
  • High Test Efficiency
  • Enclosure rating: IP 65.
  • Interface : RS232, RS485.
  • Accuracy: ±2%
  • Physical method with almost no consumable
  • Response time < 60 sec.
  • Easy and low maintenance.
  • Built in Display 15” (optional 7” touch screen).
  • Built in 3 hours battery backup
  • Online data transmission to CPCB/SPCB.
  • Inbuilt purging system.
  • Inbuilt auto sample line cleaning
  • Real time Recording.

INDUSTRIES WE SERVE

Govt. STPs
Textiles Industries
Dairy & food industries
Pharmaceutical Industries
Automobile Industries
Sugar Mills
