Groundwater Management & Monitoring
Product Advantage:

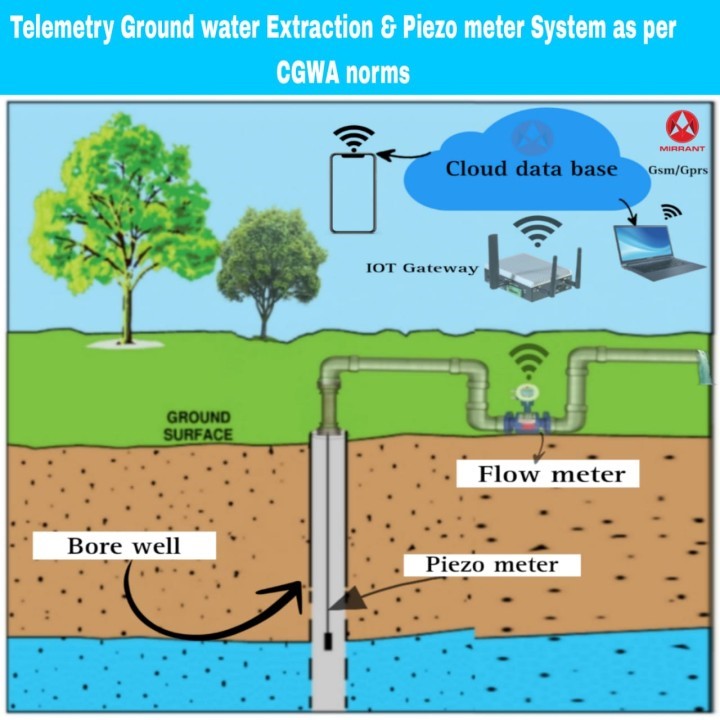

Groundwater monitoring is a formal process of regularly collecting groundwater data (e.g. water levels, quality, rainfall, abstraction), and analysing it to observe groundwater trends until monitoring objectives are met.
- As per Gazette of India dated 24 Sept. 2020, it is mandatory now to monitor the Ground water Level and Ground Water drawn from the bore well.
- JMD provides complete solution for the same. We can use your existing flow meter , Level Sensor & connect to our System.
- If our Online Effluent Monitoring system is installed, both the parameters can be interface to the same & can save the cost.
- Also in case, no existing system is available, we can provide the new system with interfacing.
PIEZOMETER
PRODUCT OVERVIEW:
A piezometer is an instrument used to measure the pressure of groundwater, in dams, pipes, and other conduits, allowing its properties to be monitored and controlled when faced with an excavation, borehole, or drainage. It is an essential tool to carry out this type of work with safety and precision. There are several types of piezometers, although two are the most used: the open tube and the vibrating wire.
PRODUCT ADVANTAGES :
- water proof stainless steel sensor.
- Comapct size,Easy to install & easy to Transport..
- No maintainance required..
- Pressure Transducer not
- affected by Wind or Rain..
- Monitor the Level of ground water and rivers.
- 4-20mA current ouput Display the data on screen & also store in excel format..
- High accuracy,reliability & Precisie..
- Rust proof,corrosion resistance 10.Shilded wire with best quality.

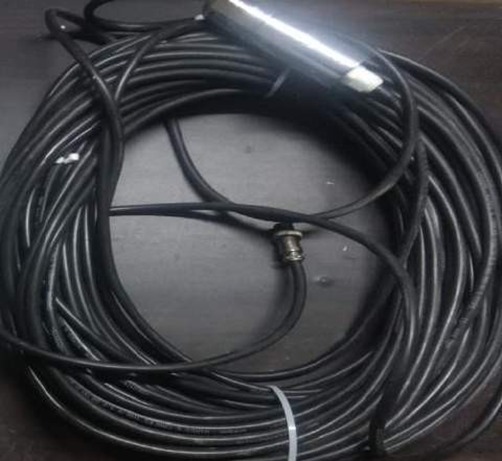

PIEZOMETER
PRODUCT OVERVIEW:
Piezometer is mainly used for measuring the Level Of Ground Water level of Borewell & Rivers.
Technical Data:
- Output: 4-20mA or Customization
- Maximum Range: Upto 400 meters
- Applicable Media: liquid or water
- Accuracy:-+0.5% FS
- Housing Material :SS Cable Material :PTFE
- Power supply :12V dc
- Process Temprature :-20 to 85’C
- Hanging : wall Mounted
- Rust proof,corrosion resistance 10.Shilded wire with best quality.
- Storage : upto 32 GB
- Online Storage : Cloud based Storage
Specifications:
SIM CARD SUPPORTING:GSM
SIM POWER CONSUMPTION:12V DC CONNECTING WIRES:2.5MM
STORAGE :CLOUD BASED
FORMAT :EXCEL OR CUSTOMIZED
INDUSTRIES WE SERVE
Govt. STPs
Textiles Industries
Dairy & food industries
Pharmaceutical Industries
Automobile Industries
Sugar Mills
